UHMWPE Thread

Display of UHMWPE thread application scenarios

UHMWPE THREAD

  • Material : UHMWPE Fiber/100% UHMWPE

  • Tenacity : >33 g/d

  • Density : 0.97g/cm3

  • Fineness : 20D-4800D

  • Color : White/Black/Grey/Blue/Red/Green/Army Green

  • Application : Mooring Rope/Cut Resistance Gloves/High Strength Fishing Line/Cut Resistance Fabric

  • Material : UHMWPE Fiber/100% UHMWPE

  • Tenacity : >28 g/d

  • Density : 0.97g/cm3

  • Fineness : 20D-4800D

  • Color : White/Black/Grey/Blue/Red/Green/Army Green

  • Application : Mooring Rope/Cut Resistance Gloves/High Strength Fishing Line/Cut Resistance Fabric

Available

Unavailable

Definition

Ultra high molecular weight polyethylene (UHMWPE) fiber yarn with it’s density of 0,97g/cm³, a modulus of 1150 cN/dtex and a tensile strength of 32 cN/dtex is a perfect yarn for high end applications.

The UHMWPE fiber (Ultra High Molecular Weight Polyethylene Yarn) has 15 times stronger than steel and 40% stronger than aramid when weight for weight basis. It is the strongest yarn today for making cut-resistance gloves, high-strength ropes, and bulletproof fabrics. Its tenacity at breaking up to 45g/D and has goods performance on anti-UV, anti-chemicals, and anti-cut.

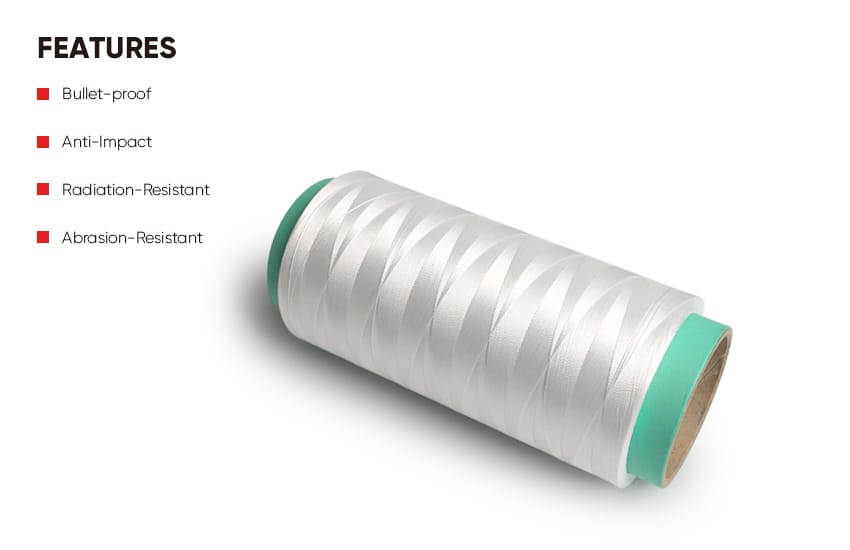

Product Features

  • BULLET-PROOF
  • Anti-Impact
  • Light Weight
  • Anti-UV
  • Corrosion-Resistant
  • Dimensional Stability
  • Radiation-Resistant

Abrasion-Resistant

Typical Technical Properties

  • After 1500 Sunshine hours, its remaining strength is more than 80%.
  • After 6 months in most chemicals (seawater, gas, etc.), its remaining strength is 100%.
  • The UHMWPE ropes remaining strength is 100% after 1000 times loaded relative test.
  • Melting Point is around 135-145, Highly resistant to abrasion, cutting, tearing
  • Its relative times until break of Abrasion proof are more than 110 to 103.
  • Its relative times until break of Winding proof are more than 110 to 103.
  • Its strength of annulation is 12 up to 18g/d. its 10 up to 15g/d for collusion.

Color is bright white and poor for dyeing.

Data Table

SpecificationTenacityModulusFilamentMonofilamentElongation
DenierDtex(cN/dtex) (≥)(g/d)(≥)(cN/dtex)(≥)towdenier% (≤)
20D2240451300153.33.50%
30D33354012501523.50%
40D44343912302023.50%
50D5534391200202.53.50%
55D8333371200302.53.50%
100D11133371150402.53.50%
125D13933371100502.53.50%
150D16532361050602.53.50%
200D22232361050802.53.50%
250D275323610501002.53.50%
300D333303410001202.53.50%
350D389303410001202.913.50%
400D44430341000160/2402.50/1.663.50%
500D555303410002402.083.50%
600D667303410002402.083.50%
800D8892832900320/4802.50/1.663.50%
1000D11112832900360/4802.77/2.083.50%
1200D13332832900480/7202.50/1.663.50%
1600D17782832900640/9602.50/1.663.50%
2800D299928309009602.5/1.663.50%

Data Table

PRODUCT NAME:  UHMWPE THREAD

SPECIFICATION:20D

TENACITY(cN/dtex):40

MODULUS(cN/dtex)(≥):1300

MONOFILAMENT(denier):3.3

ELONGATION AT BREAK:  3.5%

SPECIFICATION:30D

TENACITY(cN/dtex):35

MODULUS(cN/dtex)(≥):1250

MONOFILAMENT(denier):2

ELONGATION AT BREAK:  3.5%

SPECIFICATION:40D

TENACITY(cN/dtex):34

MODULUS(cN/dtex)(≥):1230

MONOFILAMENT(denier):2

ELONGATION AT BREAK:  3.5%

SPECIFICATION:50D

TENACITY(cN/dtex):34

MODULUS(cN/dtex)(≥):1200

MONOFILAMENT(denier):2.5

ELONGATION AT BREAK:  3.5%

SPECIFICATION:55D

TENACITY(cN/dtex):33

MODULUS(cN/dtex)(≥):1200

MONOFILAMENT(denier):2.5

ELONGATION AT BREAK:  3.5%

SPECIFICATION:100D

TENACITY(cN/dtex):33

MODULUS(cN/dtex)(≥):1150

MONOFILAMENT(denier):2.5

ELONGATION AT BREAK:  3.5%

SPECIFICATION:125D

TENACITY(cN/dtex):33

MODULUS(cN/dtex)(≥):1100

MONOFILAMENT(denier):2.5

ELONGATION AT BREAK:  3.5%

SPECIFICATION:150D

TENACITY(cN/dtex):32

MODULUS(cN/dtex)(≥):1050

MONOFILAMENT(denier):2.5

ELONGATION AT BREAK:  3.5%

SPECIFICATION:200D

TENACITY(cN/dtex):32

MODULUS(cN/dtex)(≥):1050

MONOFILAMENT(denier):2.5

ELONGATION AT BREAK:  3.5%

SPECIFICATION:250D

TENACITY(cN/dtex):32

MODULUS(cN/dtex)(≥):1050

MONOFILAMENT(denier):2.5

ELONGATION AT BREAK:  3.5%

SPECIFICATION:300D

TENACITY(cN/dtex):30

MODULUS(cN/dtex)(≥):1000

MONOFILAMENT(denier):2.5

ELONGATION AT BREAK:  3.5%

SPECIFICATION:350D

TENACITY(cN/dtex):30

MODULUS(cN/dtex)(≥):1000

MONOFILAMENT(denier):2.91

ELONGATION AT BREAK:  3.5%

SPECIFICATION:400D

TENACITY(cN/dtex):30

MODULUS(cN/dtex)(≥):1000

MONOFILAMENT(denier):2.50/1.66

ELONGATION AT BREAK:  3.5%

SPECIFICATION:500D

TENACITY(cN/dtex):30

MODULUS(cN/dtex)(≥):1000

MONOFILAMENT(denier):2.08

ELONGATION AT BREAK:  3.5%

SPECIFICATION:600D

TENACITY(cN/dtex):30

MODULUS(cN/dtex)(≥):1000

MONOFILAMENT(denier):2.08

ELONGATION AT BREAK:  3.5%

SPECIFICATION:800D

TENACITY(cN/dtex):28

MODULUS(cN/dtex)(≥):900

MONOFILAMENT(denier):2.50/1.66

ELONGATION AT BREAK:  3.5%

SPECIFICATION:1000D

TENACITY(cN/dtex):28

MODULUS(cN/dtex)(≥):900

MONOFILAMENT(denier):2.77/2.08

ELONGATION AT BREAK:  3.5%

SPECIFICATION:1200D

TENACITY(cN/dtex):28

MODULUS(cN/dtex)(≥):900

MONOFILAMENT(denier):2.50/1.66

ELONGATION AT BREAK:  3.5%

SPECIFICATION:1600D

TENACITY(cN/dtex):28

MODULUS(cN/dtex)(≥):900

MONOFILAMENT(denier):2.50/1.66

ELONGATION AT BREAK:  3.5%

SPECIFICATION:2800D

TENACITY(cN/dtex):30

MODULUS(cN/dtex)(≥):900

MONOFILAMENT(denier):2.50/1.66

ELONGATION AT BREAK:  3.5%
